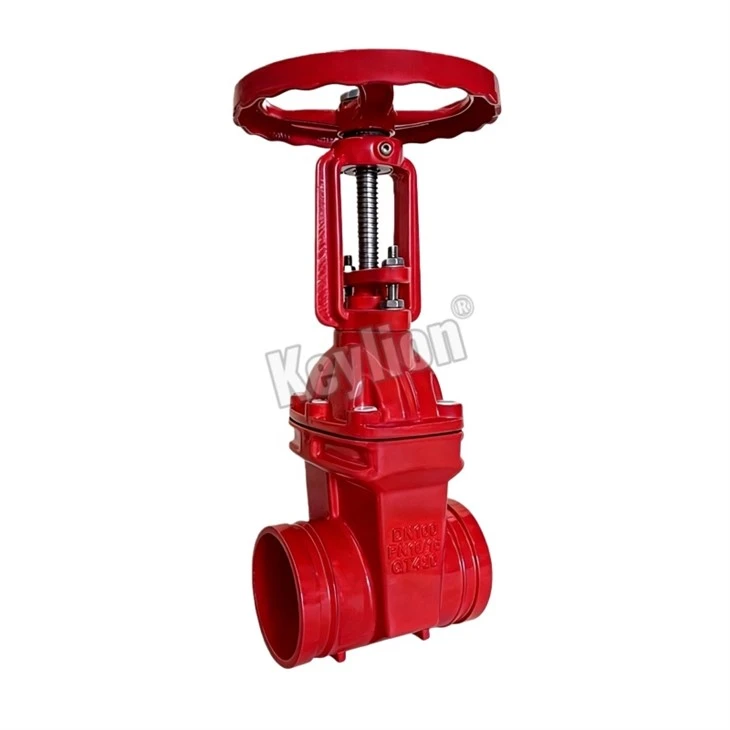

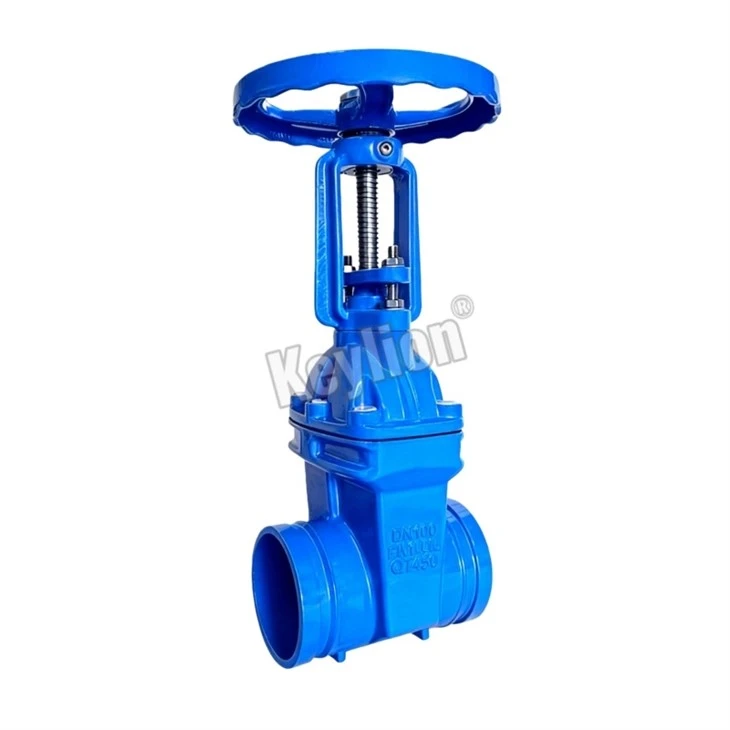

Rooj vag Valve nrog Rising qia
Product Overview
Rooj vag Valve Nrog Rising Stem muab kev txhim khu kev qha rau / tawm ntws tswj rau kev lag luam thiab cov kav dej hauv nroog. Qhov nce siab qhia meej qhia qhov chaw valve, pab cov neeg ua haujlwm txheeb xyuas qhov qhib / kaw ntawm qhov deb. Cov ntsia hlau sab nraud thiab tus quab (OS & Y) tsim ua kom cov qia threads cais tawm ntawm qhov ntws, txo cov kev xeb thiab kev tu vaj tse.
Nws yog dav siv hauv kev siv dej, kev kho dej, HVAC, thiab kev tiv thaiv hluav taws uas txhim khu kev qha, xoom- kaw qhov dej tawm- yuav tsum tau ua haujlwm.
Khoom Parameter
|
Yam khoom |
Paub meej |
|
Hom |
Keylion® / OEM |
|
Khoom npe |
Rooj vag Valve Nrog Rising Stem / flange sab nraud ntsia hlau & yoke rooj vag valve |
|
Kev sib txuas |
Flange kawg |
|
Cov khoom tseem ceeb |
Hlau Hlau |
|
Txuj |
ANSI/GB/BS |
|
Qhov Loj Muaj |
2"-12" / DN50-DN300 |
|
Ua Haujlwm Siab |
1.6MPA |
|
Xim |
Liab / Xiav / Customized |
|
Ua haujlwm kub |
0℃txog 80℃(32 ℉ txog 176 ℉) |
|
Nto Finishing |
Epoxy xim txheej |
|
Application Medium |
Dej |
|
Warranty |
3 Xyoo |
|
Ntim |
Export Ntoo Carton |
Khoom siv
|
Pkos duab |
Khoom siv |
|
|
Txuj |
xaiv tau |
|
|
Lub cev |
Hlau Hlau QT450-10 |
|
|
Qe |
SS420 (2Cr13) Stainless hlau |
201 Stainless hlau |
|
Bonnet |
Hlau Hlau QT450-10 |
|
|
Handwheel |
Hlau Hlau QT450-10 |
|
|
Disc |
Hlau Hlau QT450-10, Npog Los ntawm EPDM |
|
|
Txiv ntseej |
Hlau Hlau |
tooj dag |
|
Bolt |
Hlau Hlau |
tooj dag |
|
O-Nplhaib |
NBR |
EPDM |
Cov yam ntxwv tseem ceeb
Rising qia muab qhov pom tseeb pom tseeb ntawm lub valve qhib / kaw txoj haujlwm los ntawm qhov deb.
EPDM-encapsulated ductile hlau disc txhawb kev ruaj ntseg sealing kev ua tau zoo raws li tus qauv kev ua haujlwm.
Fusion-pab pawg epoxy txheej siv sab hauv thiab sab nraud txhim kho corrosion kuj thiab tsim nyog rau cov dej haus.
OS&Y (cov ntsia hlau sab nraud thiab tus quab) tsim kom cov qia xov cais tawm ntawm qhov nruab nrab ntws, txo qhov hnav thiab kev pheej hmoo corrosion.
Ntau O-ntiv nplhaib sealing qauv txhim kho qia sealing kev ua tau zoo thiab txo cov kev tu ncua.
Txheem flange qhov ntev kom ntseeg tau tias muaj kev sib raug zoo nrog cov kav dej uas twb muaj lawm thiab cov qauv kev teeb tsa thoob ntiaj teb.
Quality Assurance & Testing
Kev ntsuas siab
Txhua lub valve yog kuaj hydrostatically ua ntej txheej thiab xa khoom xa tuaj (Plhaub kuaj ntawm 2.4 MPa, Rooj zaum ntawm 1.76 MPa) raws li ISO 5208.
Txheej tshuaj xyuas
Peb kuaj cov epoxy txheej thickness siv cov ntsuas ntsuas los xyuas kom meej tias nws ua tau raws li qhov xav tau yam tsawg kawg nkaus ntawm 250 microns, tiv thaiv pinholes thiab thaum ntxov corrosion.
Traceable Thaum tshav kub kub naj npawb
Txhua lub cev hlau lub cev casting yog stamped nrog tus lej xov tooj rau cov khoom siv raw batch traceability.
Ntim & Export
Hiav txwv - tsim nyog export plywood rooj (fumigation-dawb)
Yas kawg kaus mom tiv thaiv flange ntsej muag thiab sab hauv sealing nto
Haum rau kev thauj mus los ntev - hiav txwv thiab av
Txhua qhov khoom xa tuaj suav nrog cov npe ntim khoom thiab daim ntawv xa nyiaj ua lag luam
Daim ntawv pov thawj ntawm keeb kwm muaj nyob rau thaum thov
Kho & Spare Parts
Txhawm rau txhawb kev ua haujlwm ntev - lub sijhawm ua haujlwm:
O-Ntiv nplhaib cov ntsaws ruaj ruaj yog hloov tau rau kev pab cuam lub neej ntev
Cov noob txiv ntoo thiab cov khoom siv tes tuav yog muaj raws li cov khoom seem
Lub voj voog kev soj ntsuam pom zoo: 12-24 lub hlis nyob ntawm kev ua haujlwm
