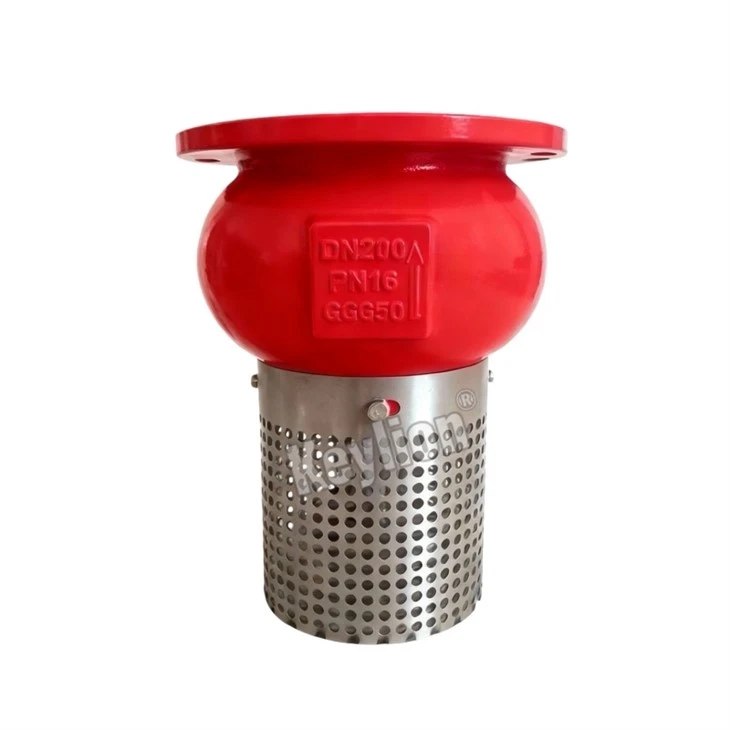

Ko Taw Valve 150MM
Product Overview
Ko Taw Valve 150mm yog hauv qab -mounted check valve tsim los tswj lub twj tso kua mis priming los ntawm kev tiv thaiv rov qab ntws hauv cov raj xa dej. Nws yog dav siv nyob rau hauv dej kom tsawg thiab kev hloov tshuab.
Cov yam ntxwv tseem ceeb

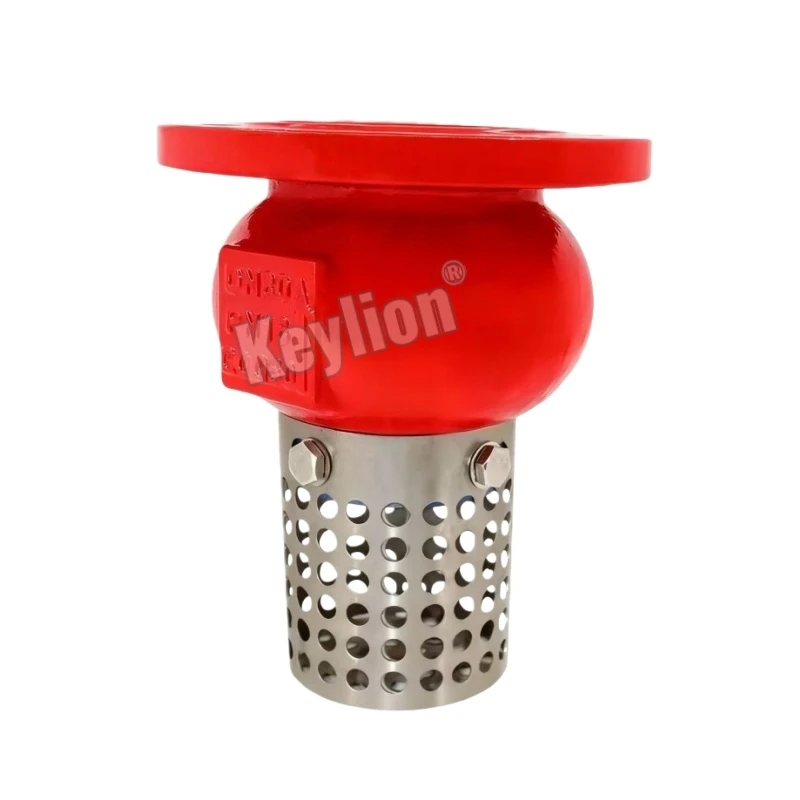

Integrated stainless hlau strainer tiv thaiv cov khoom loj thiab cov khib nyiab los ntawm kev nkag mus rau hauv cov kav dej thiab cov twj tso kua mis.
EPDM-coated disc sealing qauv txhim kho sealing kev ua tau zoo thiab txo qis kev pheej hmoo rov qab thaum kaw.
Ductile hlau lub cev tsim ua kom muaj zog txhua yam thiab lub neej ua haujlwm ntev hauv kev ua haujlwm siab.
Stainless hlau sab hauv cov khoom txhim kho corrosion kuj nyob rau hauv dej thiab dej phwj siv.
Tsawg qhib tsis kam tsim pab txo qhov nqus poob thiab txhim kho lub twj tso kua mis kev ua haujlwm.
Flanged kev twb kev txuas configuration txhawb compatibility nrog ntau yam thoob ntiaj teb piping qauv.
Technical Specifications
| Parameter | Specification |
| Yam khoom | Ko Taw Valve |
| Nominal Loj | DN150 (150 hli / 6 ") |
| Muaj Qhov Loj Loj | DN50-DN300 (2"-12") |
| Kev ntsuas siab | PN10 / PN16 / PN25 |
| Ua Haujlwm Nruab Nrab | Dej / Dej |
| Hom kev sib txuas | Flanged |
| Flange Txheem | ANSI / GB / BS |
| Xim xaiv | Xiav / Liab |
| Ua haujlwm kub | Nyob ntawm cov khoom sealing thiab nruab nrab tej yam kev mob |
Khoom Paub meej
| Cheebtsam | Khoom siv |
| Lub cev | Hlau Hlau QT450-10 |
| Cov lim dej | Stainless hlau 304 |
| Qe | Stainless hlau 304 |
| Disc | Ductile Hlau nrog EPDM Txheej |
| Caij nplooj ntoos hlav | Stainless hlau 304 |
| Bushing | Bronze |
| foob | EPDM |
Daim ntawv thov Scenario
Pump suction pipeline systems
Cov dej hauv av extraction systems
Raw dej kom tsawg system
Cov kav dej xa mus thiab faib cov kav dej
Irrigation Pumping systems
Cov kav dej phwj tuaj
Reservoir thiab tank suction installation
Municipal water supply pumping stations
Industrial txheej txheem dej ncig systems
Quality Assurance
Raw khoom soj ntsuam rau tshuaj muaj pes tsawg leeg thiab mechanical khoom pov thawj
Dimensional soj ntsuam raws li daim duab thiab flange tus qauv xav tau
Kev ntsuas siab suav nrog lub plhaub lub zog kuaj thiab kuaj kev sib khi
Kev tshuaj ntsuam xyuas rau lub rooj zaum sealing kev ua tau zoo
Txheej thickness tshuaj xyuas qhov twg txheej yuav tsum tau
Surface thiab tsos ua ntej ntim
Cov khoom siv traceability tswj thaum lub sijhawm tsim khoom
ISO 9001 Kev Tswj Xyuas Kev Tswj Xyuas Kev Ua Tau Zoo
Xaiv EN 10204 3.1 cov ntaub ntawv pov thawj
Kev xaiv thib peb -kev txhawb nqa kev soj ntsuam (SGS / BV / TUV)
Customization Options
| Yam khoom | Muaj Kev Xaiv |
| Cam khwb cia logo / Laser npav / Nameplate | |
| Ntim | Plywood case / Carton / Customized export ntim |
| Flange Txheem | ANSI / DIN / BS / JIS / GB |
| Khoom siv kho dua tshiab | SS316 / Tag Nrho Cov Hlau Stainless / Lwm cov ntaub ntawv sib khi |
| Txheej | Epoxy txheej / Anti-corrosion txheej |
| Xim | Xiav / Liab / Customized xim |
| Qib Siab | PN10 / PN16 / PN25 |
| Khoom siv foob | EPDM / NBR / Viton |
| Hom kev sib txuas | Flanged / Customized kev sib txuas |
